800W Slim Solar Kit ｜Plug & Play Balcony Solar System
800W Slim Solar Kit ｜Plug & Play Balcony Solar System

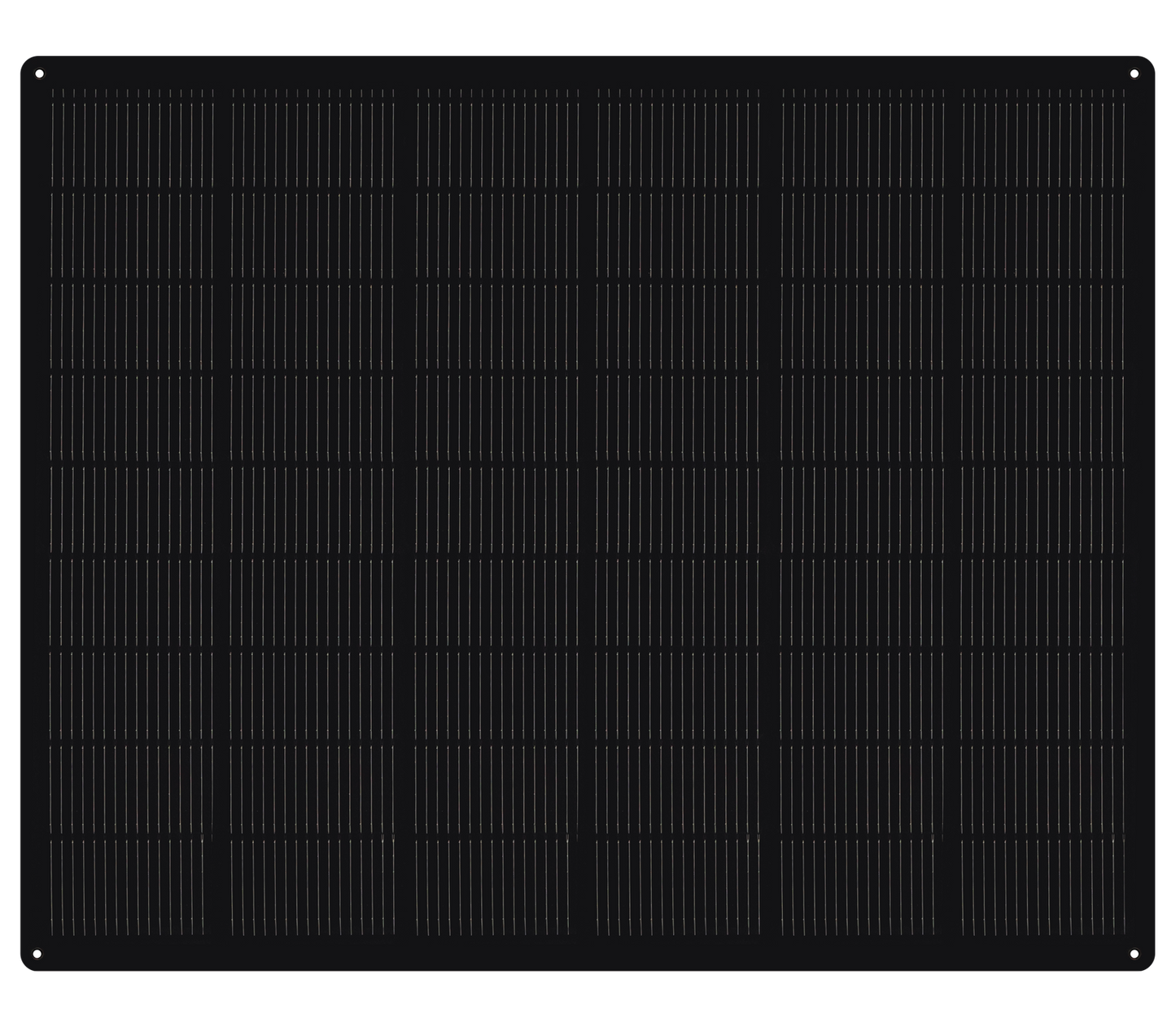

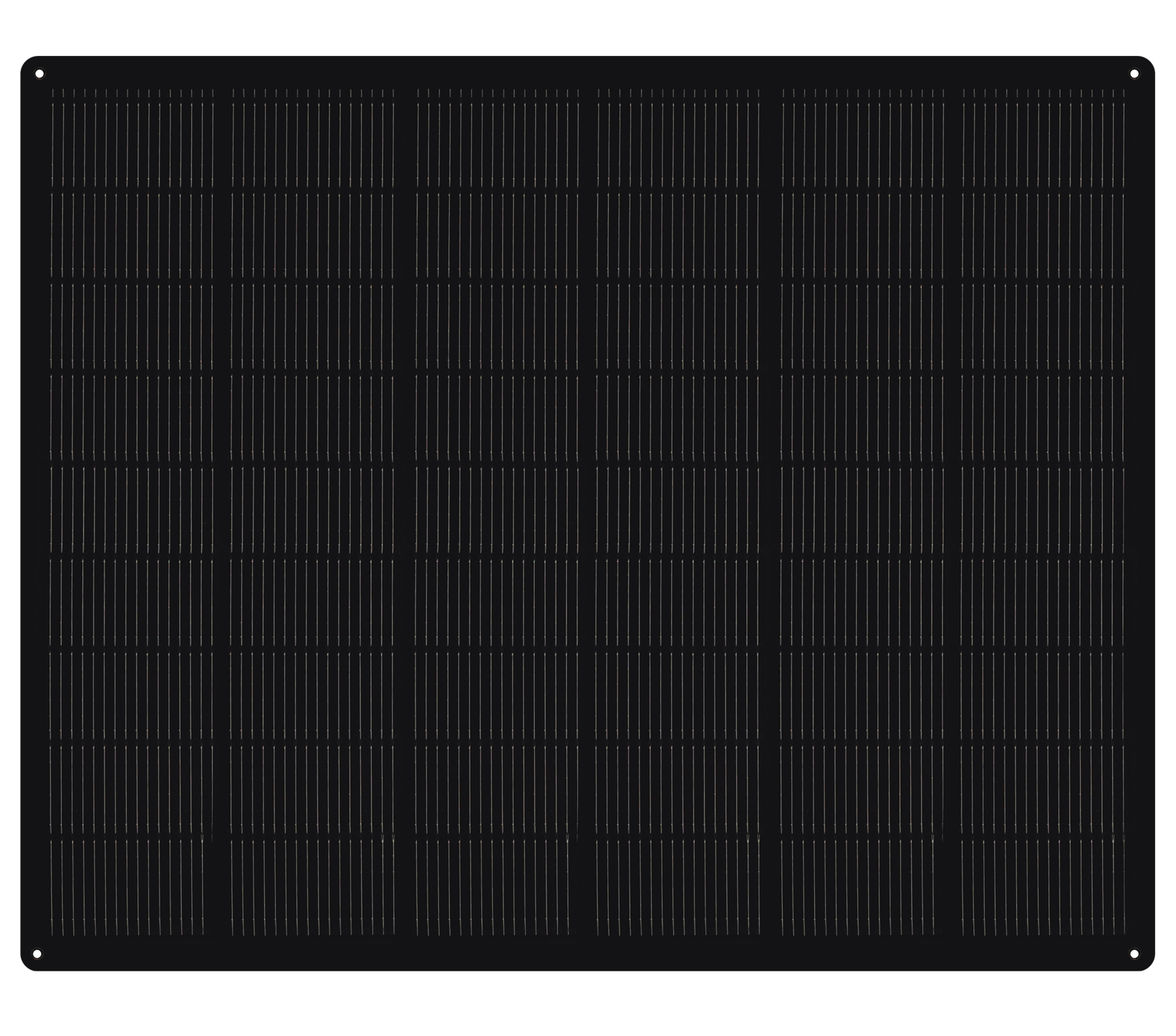

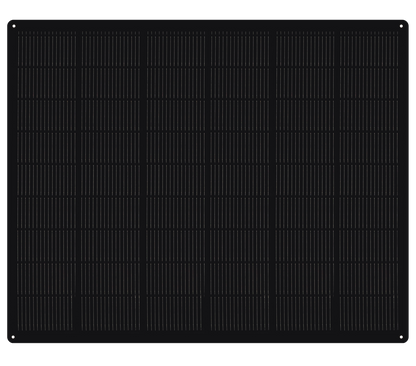

Lightweight Flexible Module Parameters (800W)
| Module Model | XB-200Wx4 |
| Module Dimensions | 590×950×27mm |
| Module Weight | 2.9kg |
| Module Quantity | 4 |
Electrical Performance Parameters
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 33.16V |
| Maximum Power Current (Imp) | 6.34A |
| Open-Circuit Voltage (Voc) | 37.85V |
| Short-Circuit Current (Isc) | 6.72A |
Safety Parameters
| Front Static Load (Snow) | 5400Pa |
| Rear Static Load (Wind) | 2400Pa |
| Protection Level | IP68 |
Temperature Coefficients
| Voltage Open Circuit Temperature (VOCT) | 44°C ± 2°C |
| Temperature Coefficient of Pmax | -0.26%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Isc | 0.04%/°C |
Microinverter Parameters
| Model | M2-800W |
| Max Input Voltage (Vdc) | 60V |
| MPPT Voltage Range (Vdc) | 16-60V |
| Startup Voltage (Vdc) | 22V |
| Max Input Current (Imax) | 2*14A |
| Rated/Max Output Power (VA) | 800/800VA |
| Maximum Efficiency | 96.5% |
| Operating Temperature Range | -40~65°C |
| Communication | Built-in WiFi, Sub-1G |
| Weight (kg) | 2.9kg |
| Dimensions (W*H*T, mm) | 238x223x34mm |
| Protection Level | IP67 |
